Manuel de montage - Gullwing TD4

Side Seeker — Expedition Gear

Gullwing Window for Land Rover Defender TD4

  • Version: 0.1
  • Date: July 17, 2026

Summary

  1. Introduction
  2. Safety Instructions
  3. Kit Contents
  4. Required Tools
  5. Difficulty and Estimated Time
  6. Vehicle Preparation
  7. Installation Steps
  8. Settings and Adjustments
  9. Final Checks
  10. Recommended Maintenance

1. Introduction

This manual describes the installation procedure for the Side Seeker gullwing window on a Land Rover Defender TD4. This is a gullwing opening (hinged at the top, opening upwards) designed to improve ventilation and access to the vehicle's cargo compartment.

1.1 Vehicle Compatibility

This kit is designed for Puma generation Land Rover Defenders, equipped with the TD4 engine (2.4 L, model years 2007-2011, then 2.2 L from 2012 until end of production in 2016).

  • Affected body types: all windows with dimensions 1020 mm × 390 mm, with upper corner radii of 50 mm and lower corner radii of 70 mm.

1.2 Product Benefits

  • Reuse of existing window frame
  • No frame disassembly required
  • Natural ventilation of the rear compartment, especially for camping / Overland setups
  • Direct access to cargo without full tailgate opening
  • Enhanced aesthetics, "expedition" look
  • Watertight seal ensured by a dedicated peripheral gasket

2. Safety Instructions

Following these instructions ensures a safe installation and prevents damage to the vehicle or the kit.

  • Park the vehicle on a flat surface, engine off, parking brake engaged.
  • Wear protective gloves when handling the panel or glass (sharp debris).
  • Wear protective eyewear when drilling, degreasing, and breaking the original glass.
  • The aluminum panel is heavy and bulky: plan for two people for handling and installation.
  • Never force hinges or gas struts: misalignment must be corrected before final fastening.
  • If a sealant (mastic / adhesive) or paint is used, respect the drying time indicated by the manufacturer before any handling.
  • Disconnect the battery if the intervention requires drilling near electrical harnesses.

3. Kit Contents

Before starting, verify that all the following parts are present and in good condition.

Réf. Désignation Qté
1 Panneau aluminium gullwing 1
2 Charnières 2
3 Vérins à gaz 2
4 Supports vérin avec rotule intérieure 2
5 Supports vérin avec rotule extérieure 2
6 Joint d'étanchéité périphérique 1
7 Poussoirs de verrouillage à verrou et clés 2
8 Vis FHC M5x20 mm — Inox A2 noire 4
9 Vis FHC M5x16 mm — Inox A2 4
10 Écrous frein M5 — Inox A2 4
11 Rondelles M5 — Inox A2 4
12 Caches écrous M5 — Plastique noir 4
13 Vis H M4x12 mm — Inox A2 4
14 Écrous frein M4 — Inox A2 8
15 Vis FHC M4x14 mm — Inox A2 4
16 Rondelles M4 — Inox A2 4
17 Caches écrous M4 — Plastique noir 8

17 références — 60 pièces au total.

4. Required tools

Tools not supplied, to be prepared before starting assembly:

  • Set of open-end / ratchet wrenches: 7 mm and 8 mm sizes
  • Hex keys
  • Drill driver
  • Metal drill bits: Ø 4.5 mm and Ø 5.5 mm
  • Marking pencil
  • Window breaker
  • Microfiber cloths and cleaning product
  • Adjustment shims for window alignment
  • Silicone grease

5. Difficulty level and estimated time

Intermediate Difficulty — Two people recommended
Estimated Time — 2 to 3 hours
Skills required — Basic automotive DIY, no advanced electrical skills required

6. Vehicle preparation

6.1 Area preparation

  1. Remove the interior trims around the window.
  2. Prepare the area by protecting the bodywork.

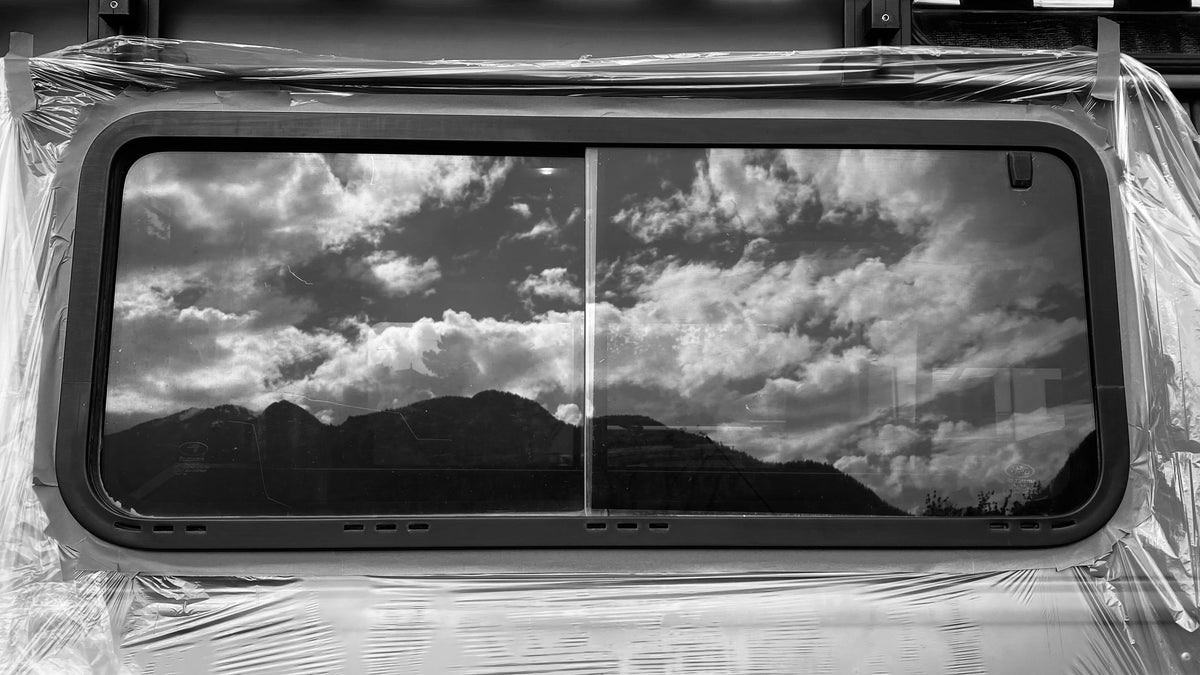

Preparing the Area

Body protection before intervention: A plastic tarp and painting-type masking tape are sufficient. This is also the ideal time to refurbish the window pillar's paint.

⚠ Two possible methods

From here, two options are available: quick disassembly (breaking the window in its frame) or complete dismantling of the window pillar (very tedious).

Only the first option is described below. When performed correctly, it does not damage the vehicle, saves many hours of disassembly/reassembly, and avoids having to redo the pillar's waterproofing.

6.2 Removal of the original window

  1. If your window does not have a film, it is advisable to tape one side to prevent the scattering of glass fragments.
  2. Place cardboard around the window to collect as many glass fragments as possible.
  3. Break the exterior window.

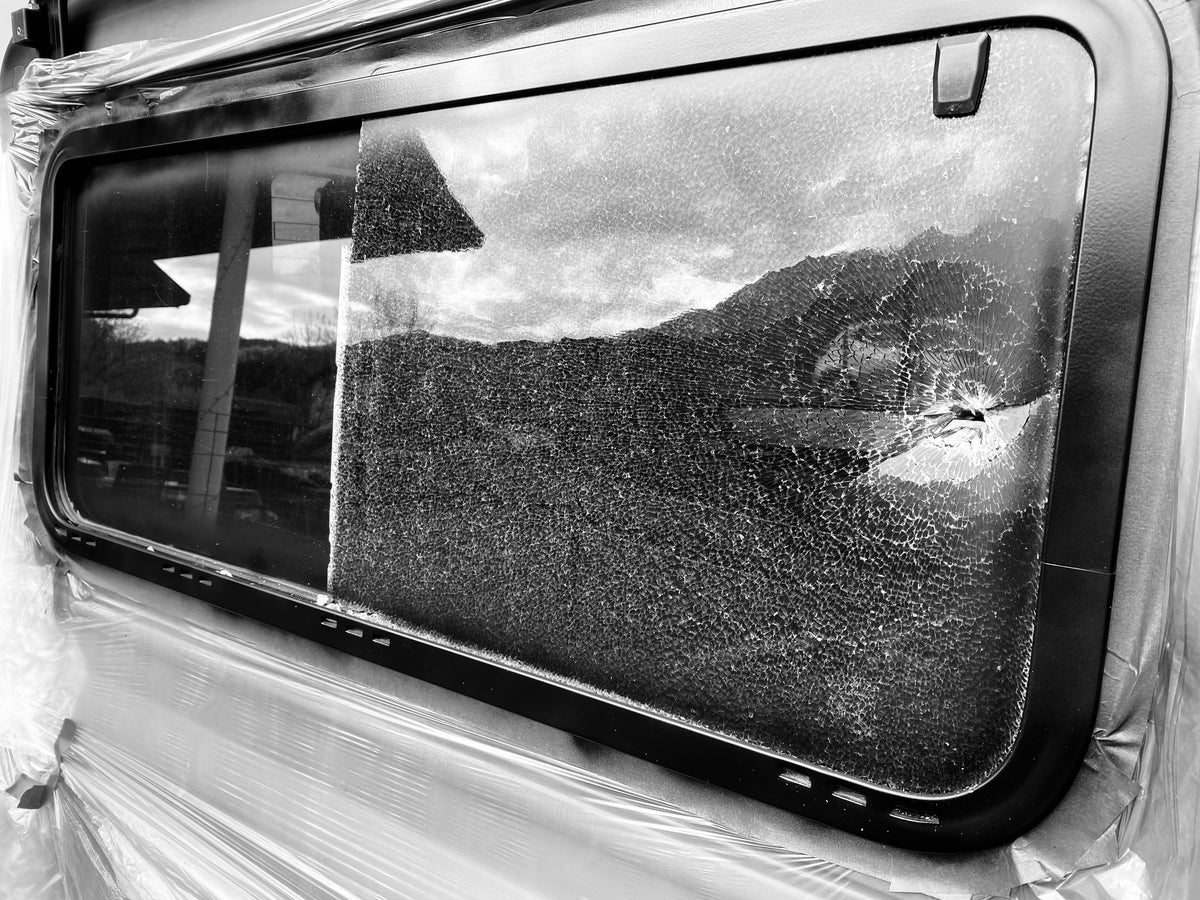

Broken original window

4. Unscrew the upper and lower screws holding the window's central support/pillar. If you current layout does not allow access to the screw's head, You can drill through them from the second window channel/groove. This may result in the second pane of glass, which is expected.
5. Remove the window's central support/pillar.
6. If not already done, break the inner pane of glass.
7. Remove the seals and all glass fragments that may have lodged in the window frame.
8. Clean the grooves of the frames that will receive the gullwing window seal.

7. Assembly Steps

Perform the steps below in the order indicated. Do not definitively tighten the screws before checking the complete alignment of the frame (step 7.2).

7.1 Seal Installation

  1. Check that no debris remains in the seal's location (outer groove).
  2. Lightly grease the seal and the groove to facilitate insertion.
  3. For the next step, keep the upper part of the seal out of its housing to mark and drill the hinge holes.
  4. Without using a sharp tool, push the seal into its housing, respecting its orientation (small radii at the top, large radii at the bottom). Installation can be difficult, but it will prevent the assembly from coming off unexpectedly.
  5. If necessary, reposition the corners of the seal to their final position.

7.2 Dry Fitting the Frame

  1. Mount the "window" part of the hinge onto the window. Screws:
    • 4 × black FHC M5×20 stainless steel screws
    • 4 × M5 stainless steel washers
    • 4 × M5 lock nuts

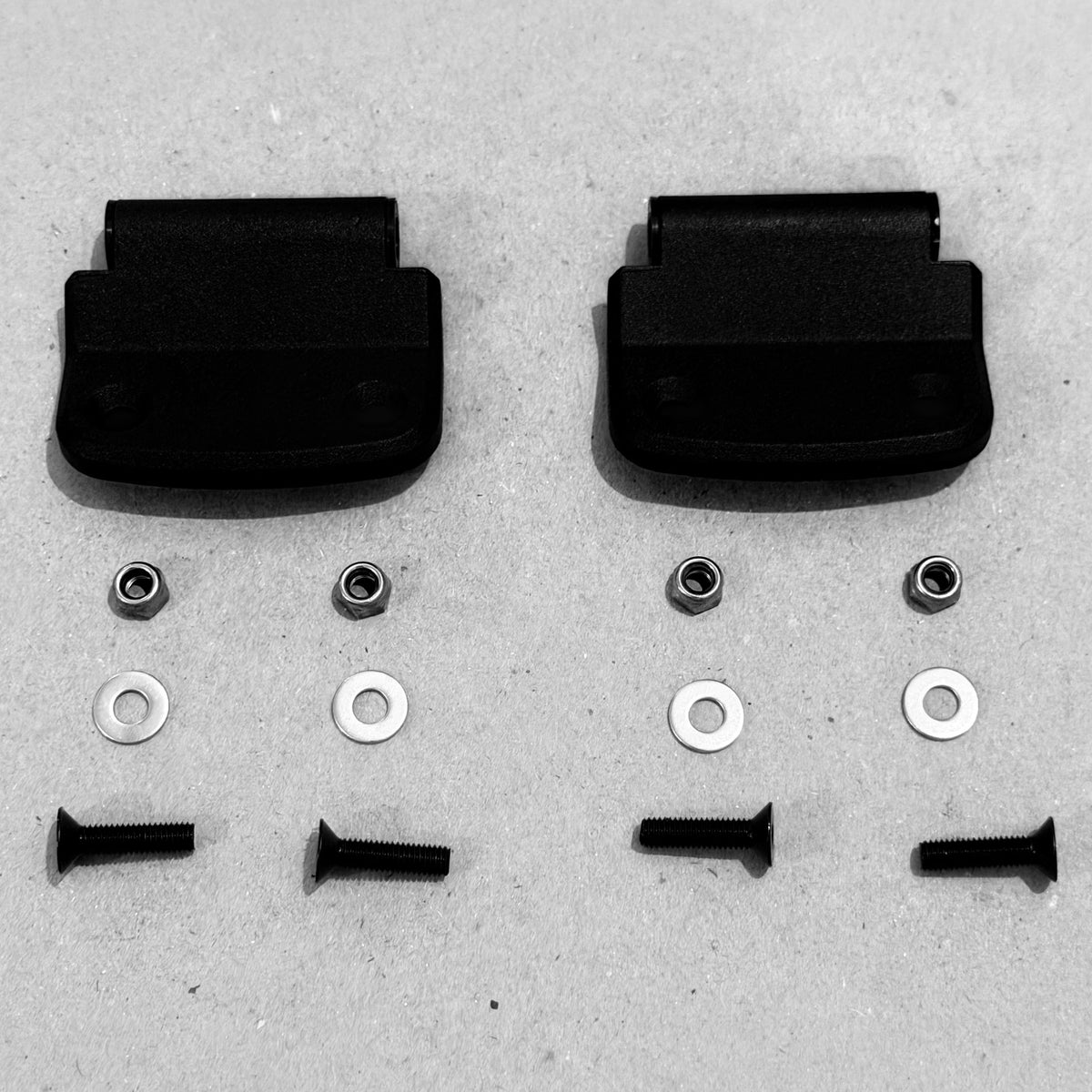

Hinge Hardware - Plate Installation

2. Attach the "frame" part of the hinge to the "window" part, without using the locking clip, to allow for reassembly.

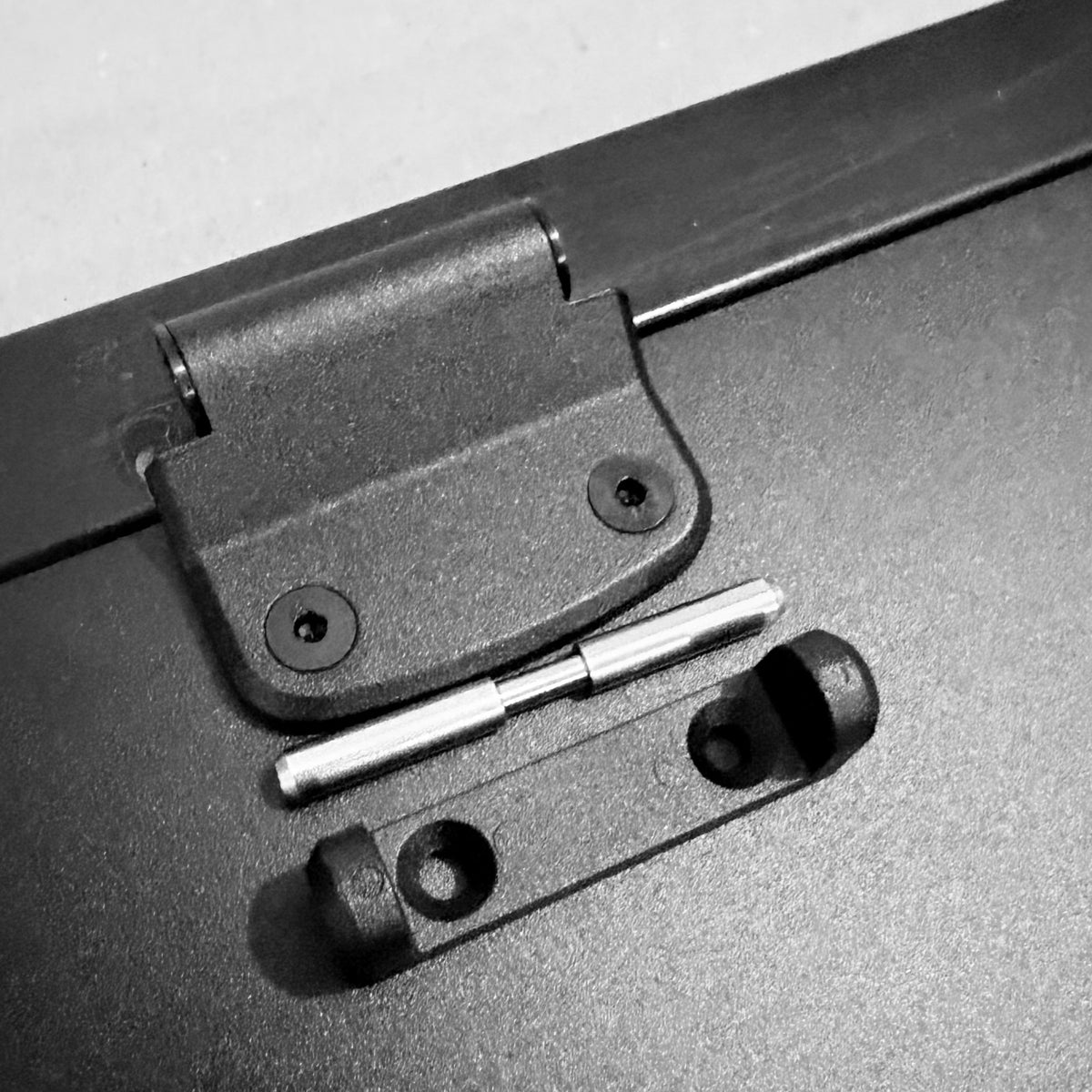

Hinge hardware

3. Position and manually hold the aluminum gullwing window in the opening, without fixing it.

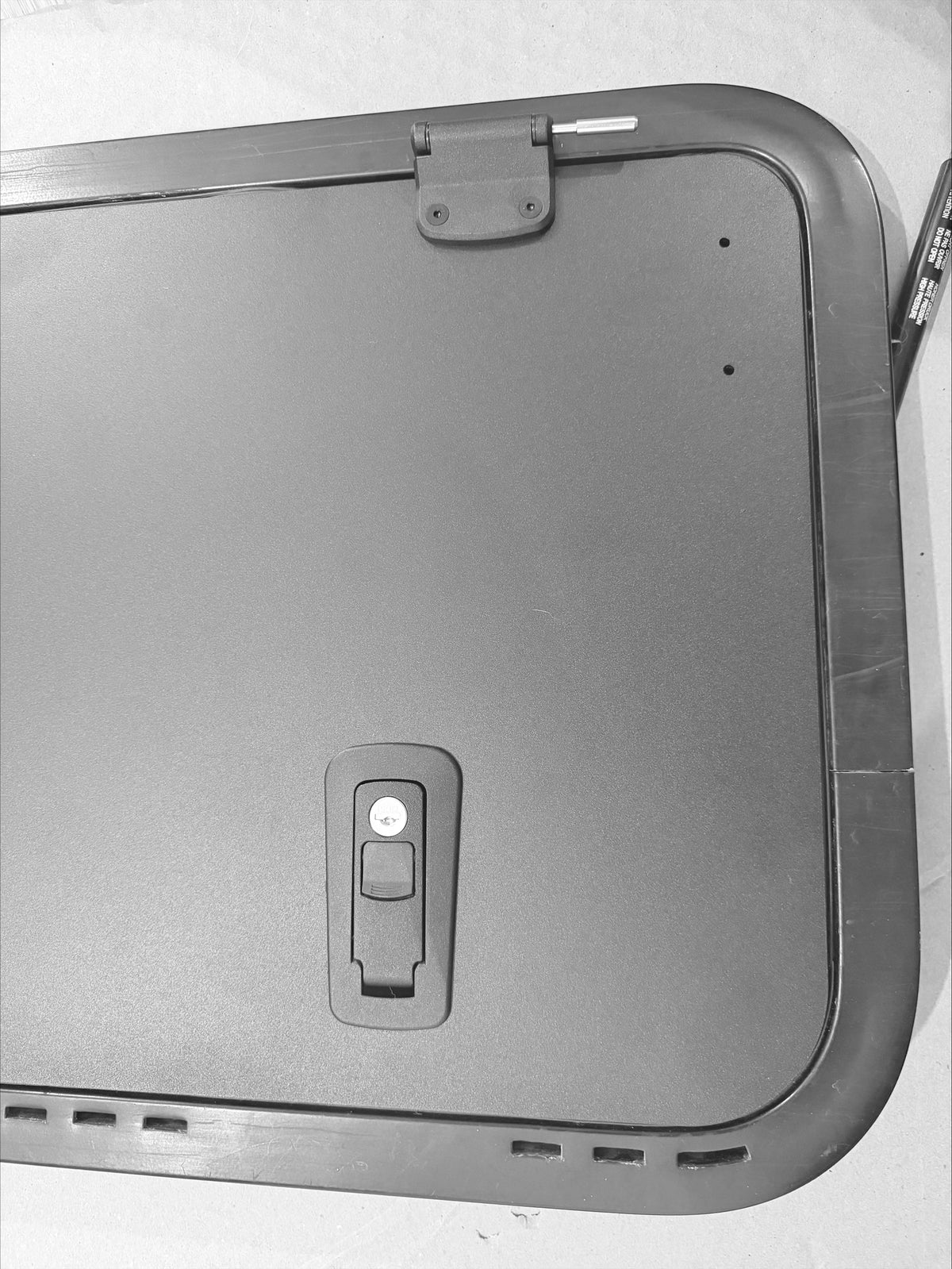

Installation of the aluminum plate

4. Visually check the peripheral clearance: it must be even all around.
5. Mark the drilling positions of the hinges on the window frame. It is recommended to cover the frame with painter's tape to avoid marking the frame directly.
6. Reposition the frame blank and check that the markings made correspond.
7. Punch, then drill to Ø 5.5 mm the four screw locations.

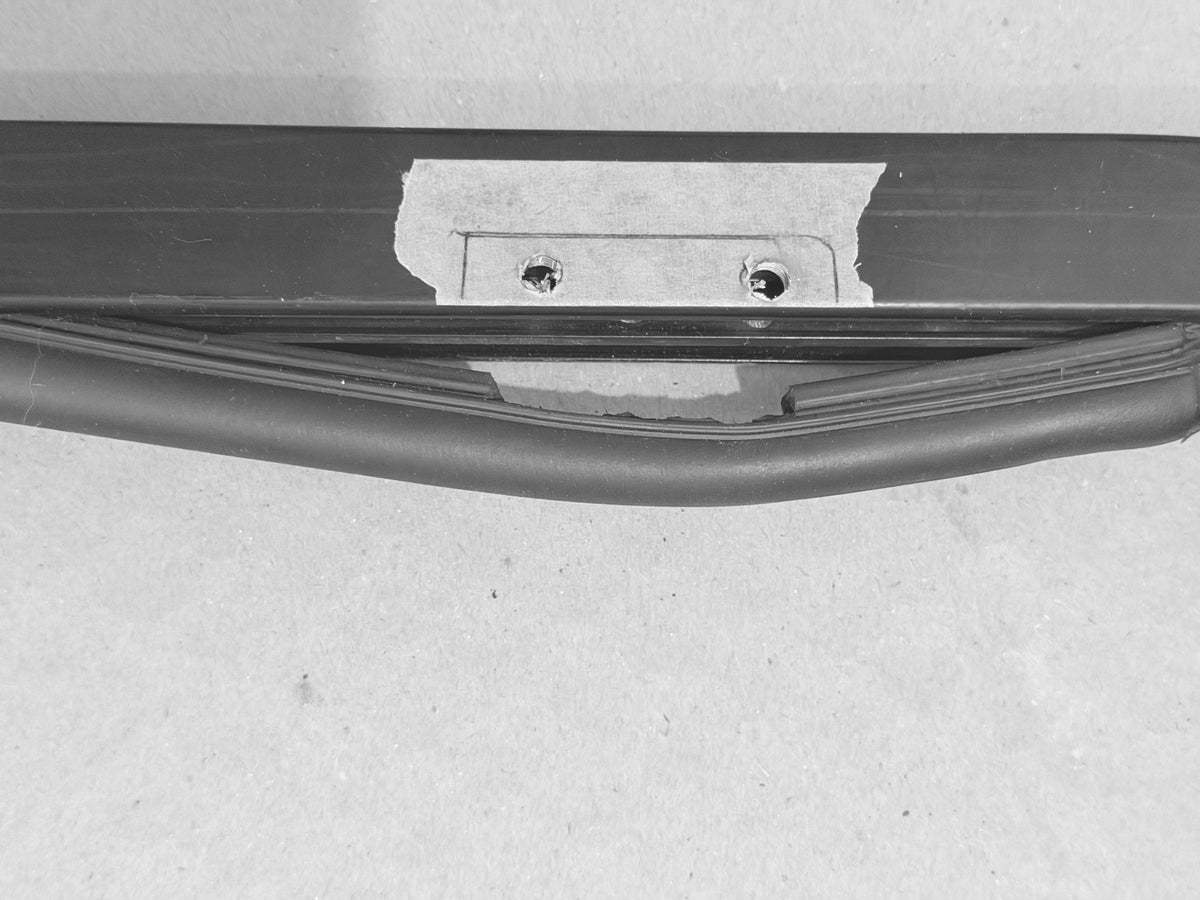

Drilling holes in the original door jamb to install the hinges

8. Clean the drill holes and remove any swarf or burrs.

7.3 Gullwing window mounting

1. Mount the hinge base on the frame, in the pre-drilled locations.
Fasteners:
• 4 × M5×10 FHC stainless steel screws
• 4 × M5 locknuts

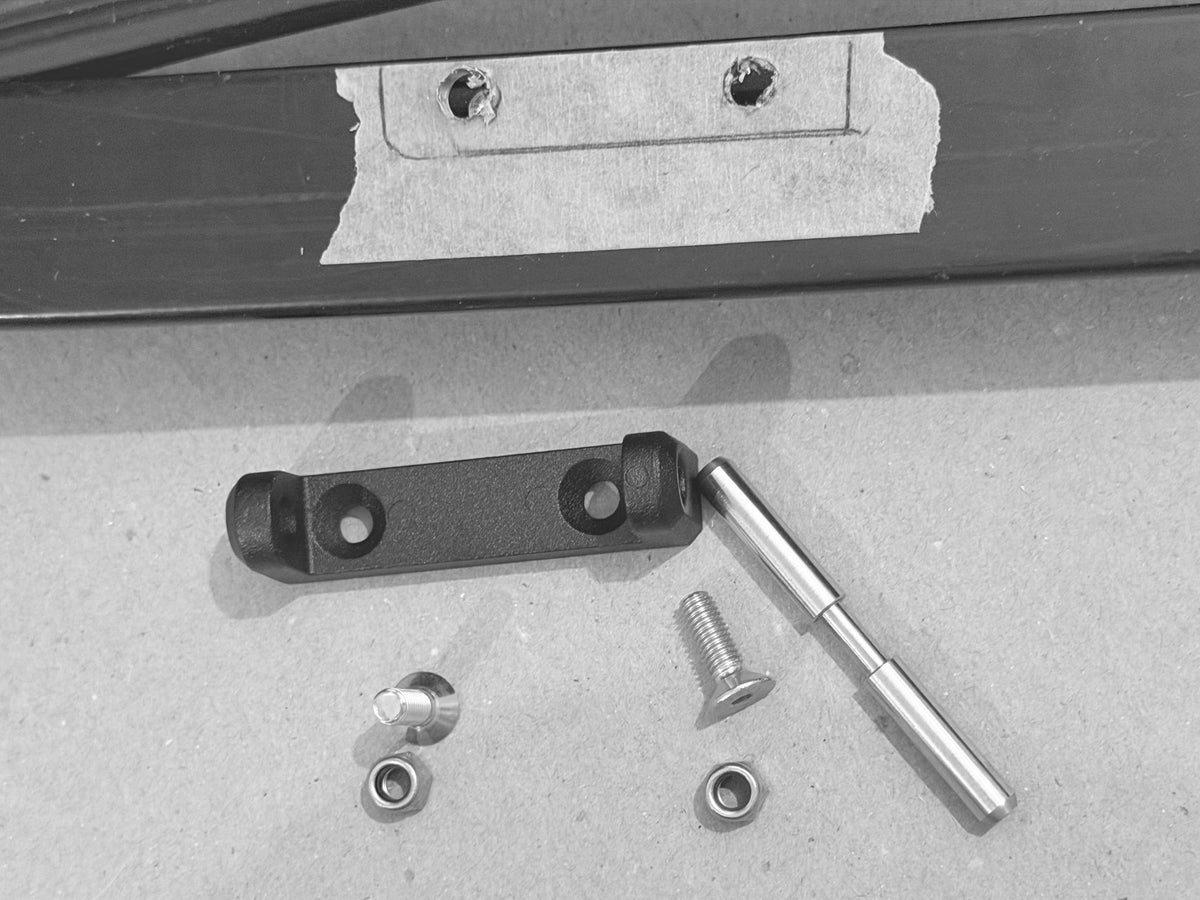

Drilling holes in the original door jamb to install the hinges and mounting hardware

2. Position the window and assemble the hinges without locking them.

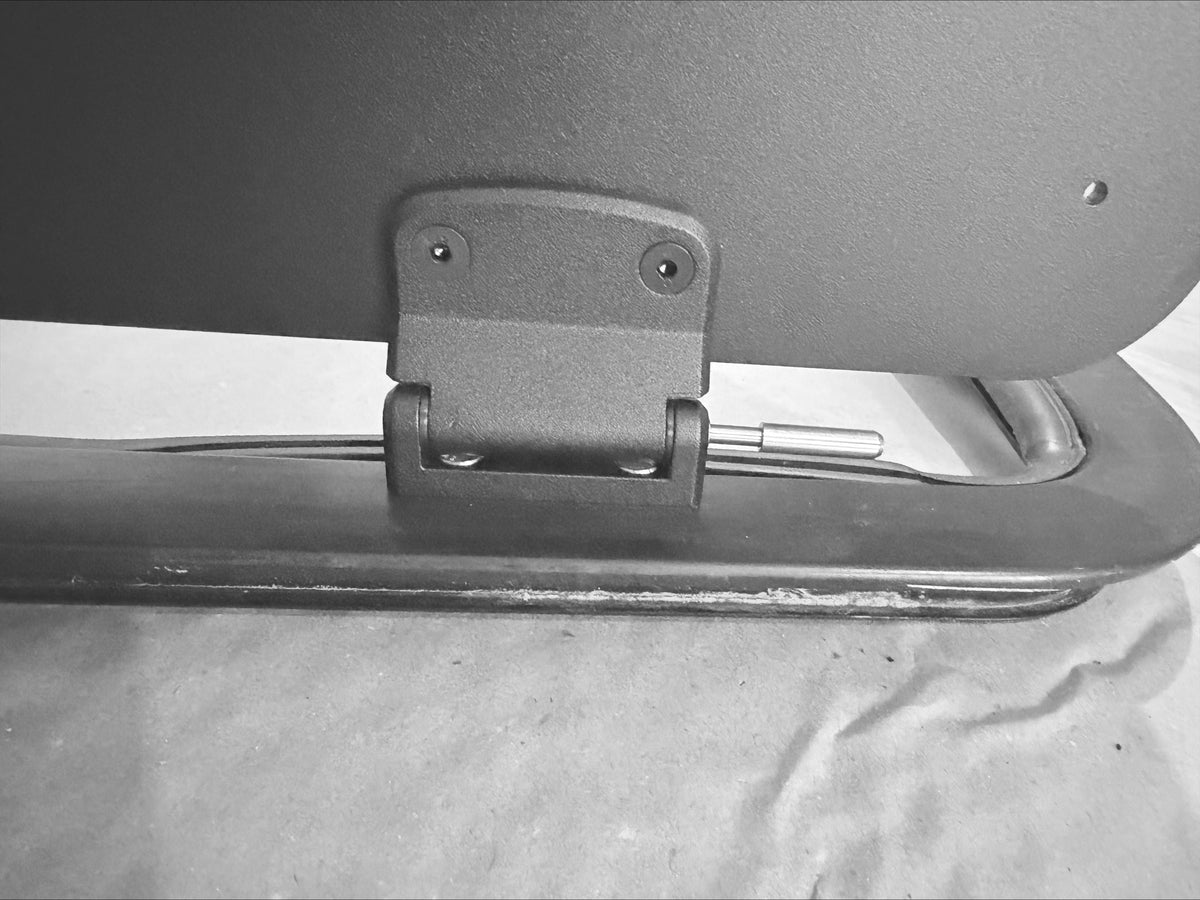

Pre-positioning of the hinge pin

3. Ensure the window is properly centered in the frame; if necessary, adjust the position of the hinge bases.
4. Once satisfied with the result, fully tighten the screws and place the hinge locking clips in their designated slots

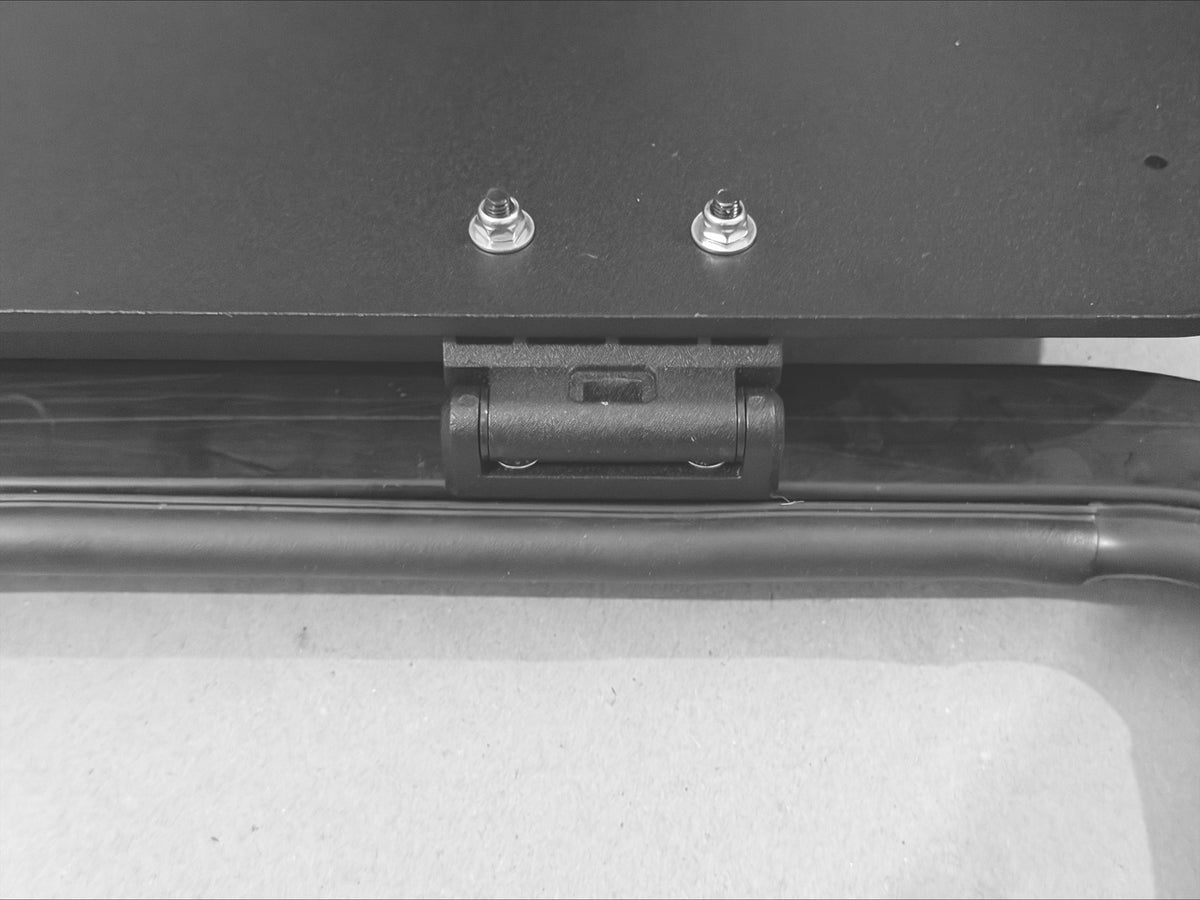

Hinge locking pin location

5. Cut the gaskets cleanly at the hinge screw locations, then finish inserting the gasket into the groove along the entire top of the frame.
6. At this stage, the window should be able to be held manually in its final closed position; all that remains is to install the hinges.

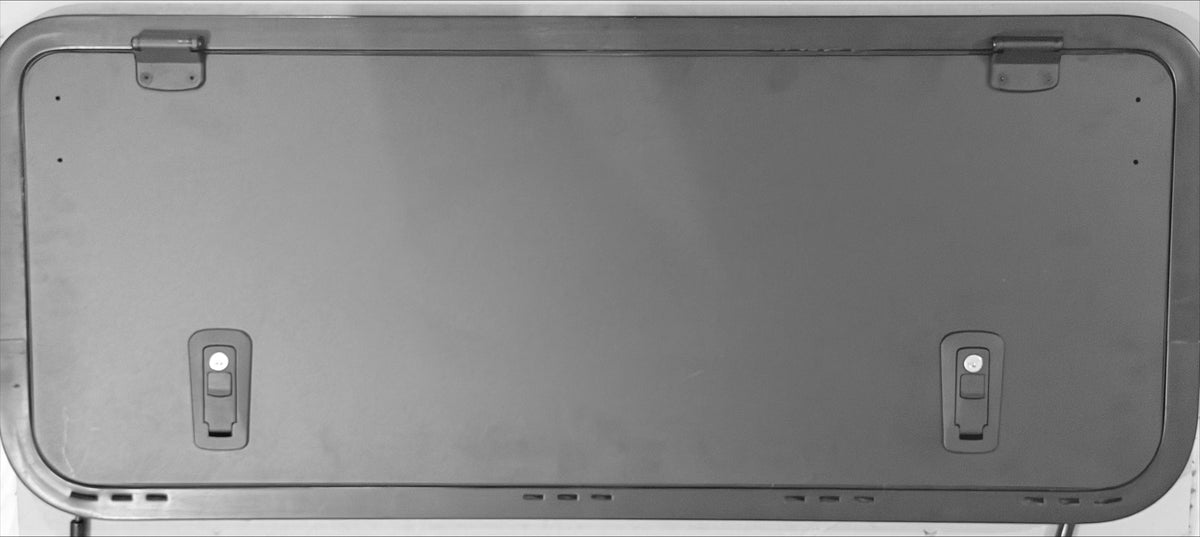

Gullwing assembly - without gas strut brackets

7.4 Mounting the gas springs

  1. Remove the safety clips from the ball joints.

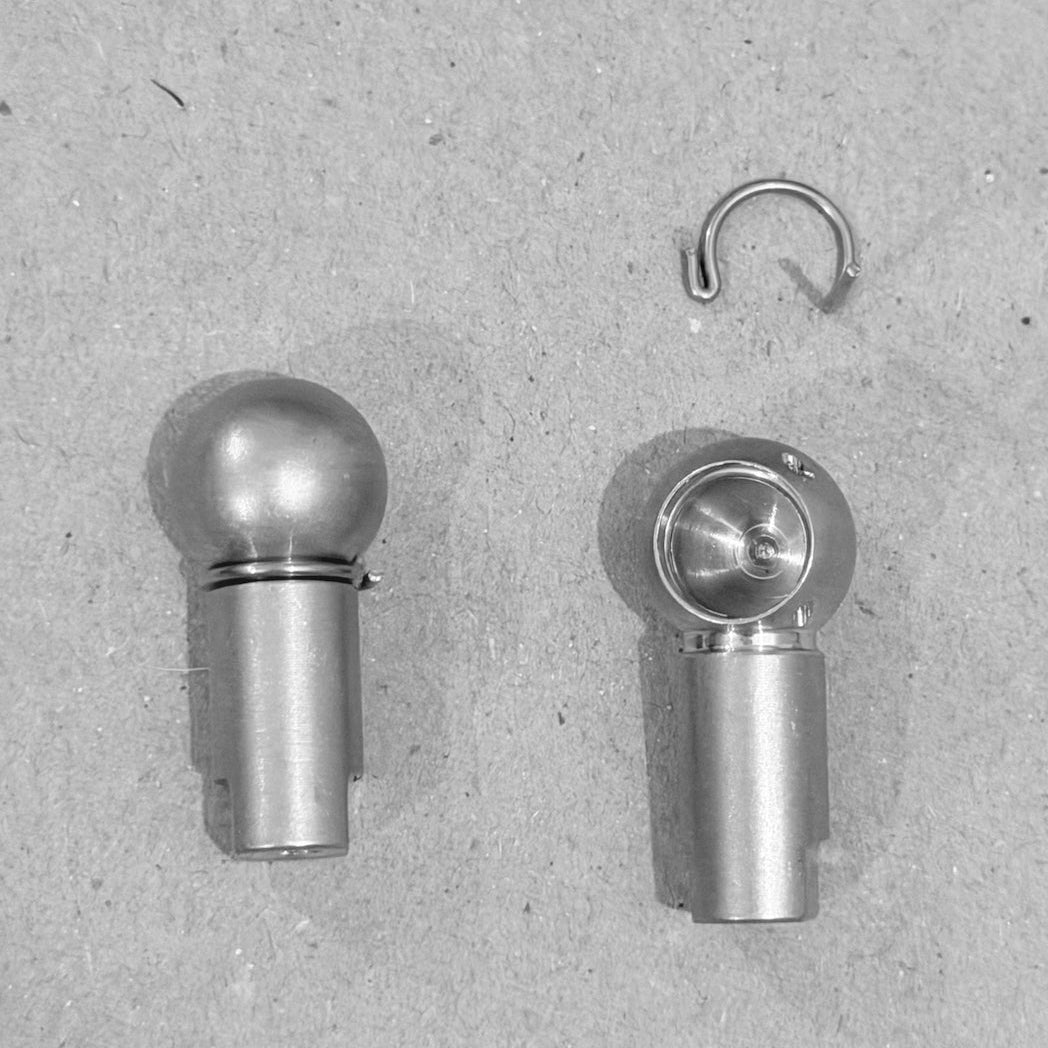

Pivot Locking Pin

2. Place the ball-joint hubs onto the inner ball-joints of the ram supports, then reinsert the safety pins.

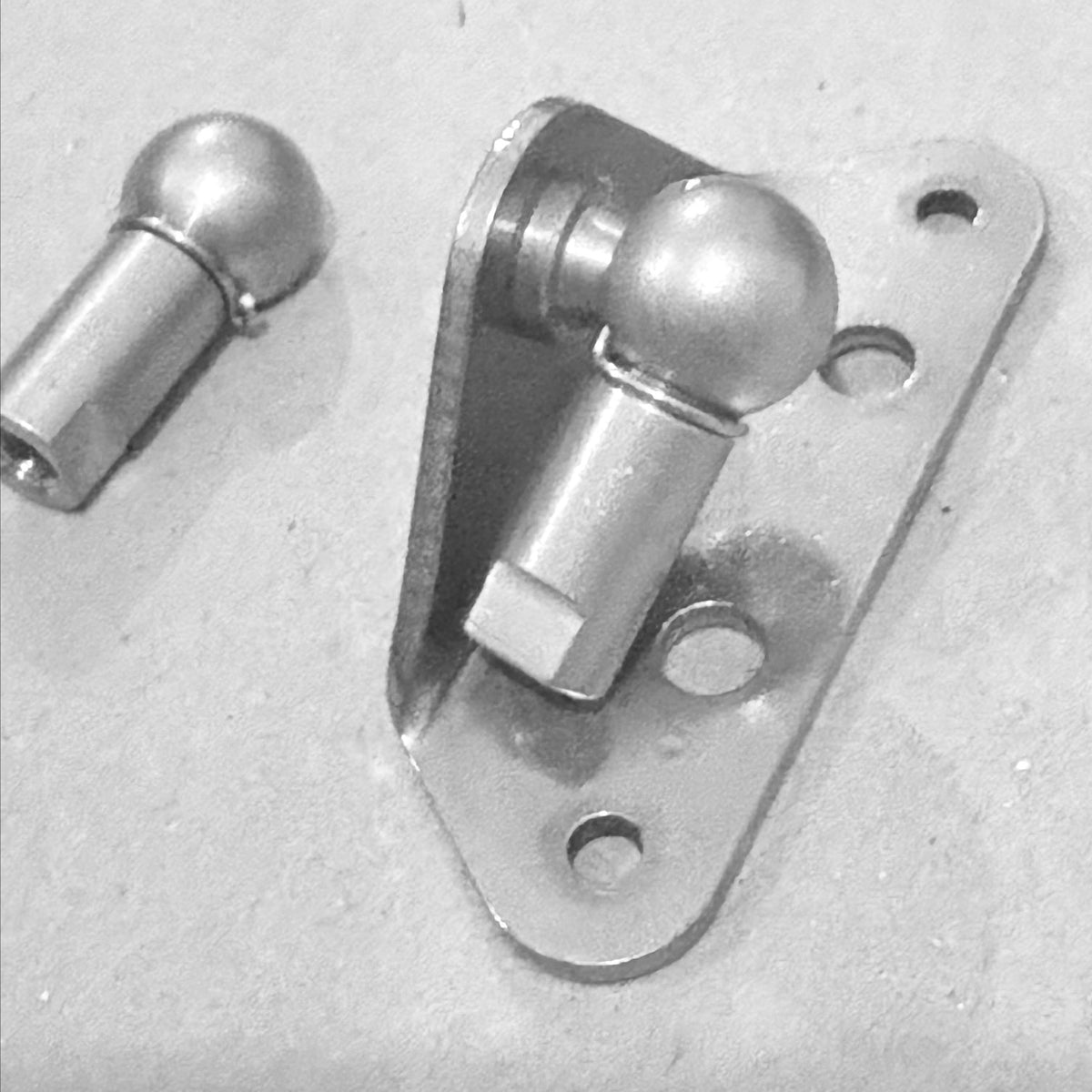

Pivot gas strut bracket mounted

3. Mount the two strut brackets with the ball joint facing inward on the aluminum plate. The ball joint should point outward from the plate.

Hardware:
• 4 × FHC M4×14 stainless steel screws
• 4 × FHC M4 screw covers with caps
• 4 × M4 lock nuts

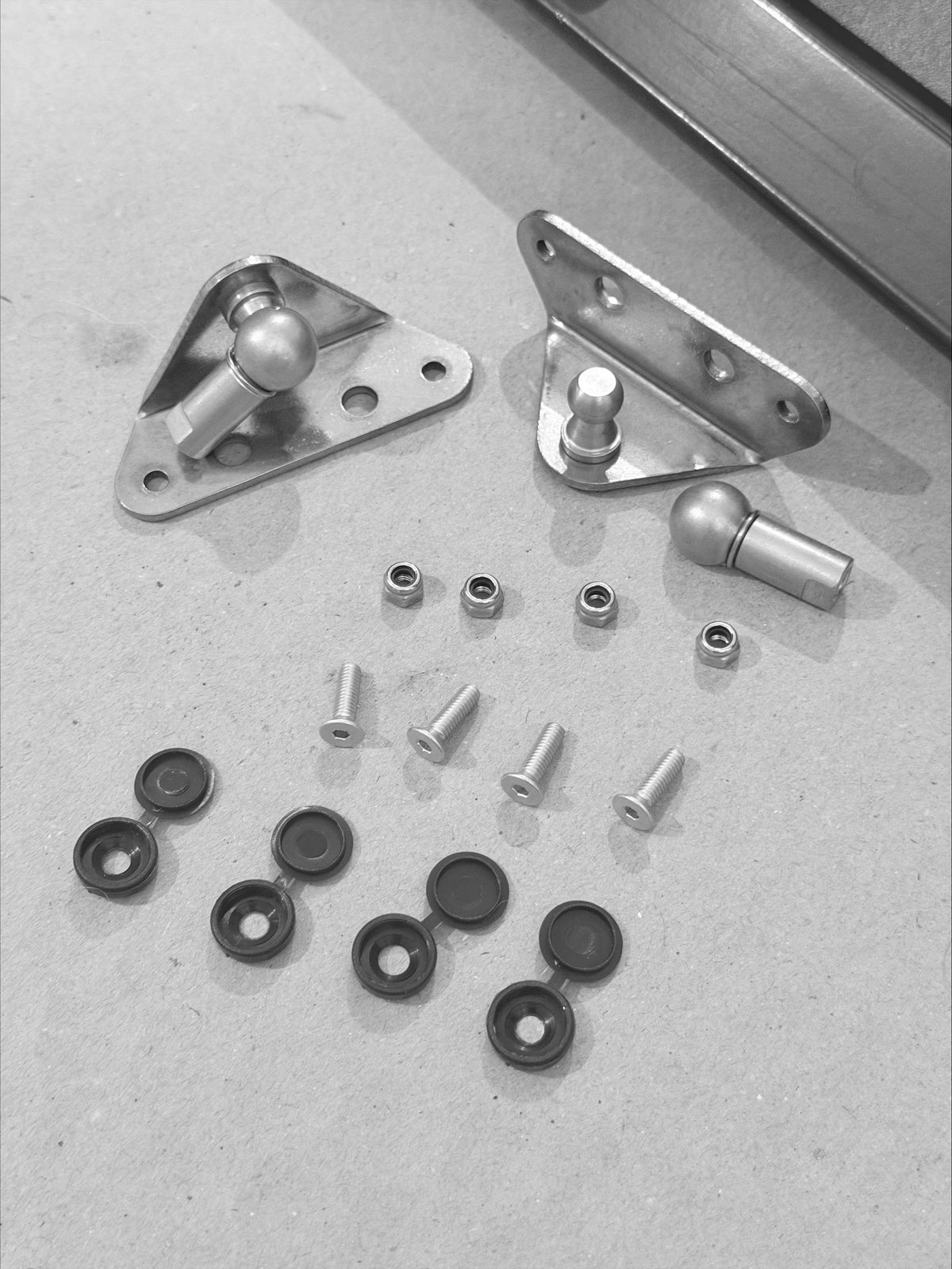

Gas strut bracket hardware

4. Hold the window in the fully open position and mark the frame at the M4 drilling locations for the cylinder brackets.

5. Center punch and drill Ø 4.5 mm at the marked locations.
⚠ Warning: Protect or remove the seals at this location to prevent slipping during drilling.

6. Screw the cylinders onto the ball joints of the previously mounted brackets.
⚠ Warning: The cylinders must be mounted with the wider diameter on the window side and the rod on the frame side, to ensure lubrication of the rod by gravity.

7. Screw the two remaining cylinder brackets onto the other end of the cylinders (rod side).

8. Screw these two brackets into the pre-drilled window frame.
Hardware:
• 4 × H M4×14 stainless steel screws
• 4 × M4 lock nuts
• 4 × M4 washers

9. Check the proper functioning of the hinges and adjust the pressure of the closing latches to ensure the seal's tightness around the entire frame. A firm push is required to open the compression latches!

10. Installation complete.

⚠ Note: As the rubber seal is new, it is normal to observe small gaps in certain parts of the seal. Allow it time to settle into its final shape. After some time, remember to retighten the compression lock screws to ensure adequate sealing.

8. Settings and Adjustments

  • Window alignment: Uniform peripheral clearance, visually checked around the entire perimeter.
  • Locking system adjustment: The closure must be positive and firm, with no residual play.

9. Final Checks

  • Perform about ten full opening/closing cycles to validate proper operation.
  • Visually check for any water infiltration inside the vehicle.
  • Check the tightening of all screws.
  • Plan a second tightening check after a break-in period of approximately 500 km.

10. Recommended Maintenance

  • Clean the seals every 3 months with a soft cloth and a non-aggressive product.
  • Grease the hinges and struts every 6 months, or before each season of intensive use.
  • Recheck the tightening of the screws after the break-in period, then once a year.
  • Inspect the condition of the seals before winter and before summer (cracks, hardening).
  • In case of frequent off-road use, check for any play in the hinges after each intensive outing.

Kit designed and distributed by Side Seeker — Expedition Gear.

Manual version 0.1 — August 10th, 2026. Document subject to change.
